Introductions - Jonathan Keep

Jonathan's post (Read An Englishman in Antwerp bellow first):

I am an artist potter based in Suffolk, England and for some time have been interested in studio based 3d ceramic printing so to find out earlier this year what Unfold have been doing was a revelation. Eager to replicate their system I visited Claire and Dries and now have my own RapMan oozing porcelain paste in my UK studio. With a desire to continue Unfolds generosity in sharing knowledge I plan to post my printing progress on the Unfold-fab blog to keep all the information in one place on the web.

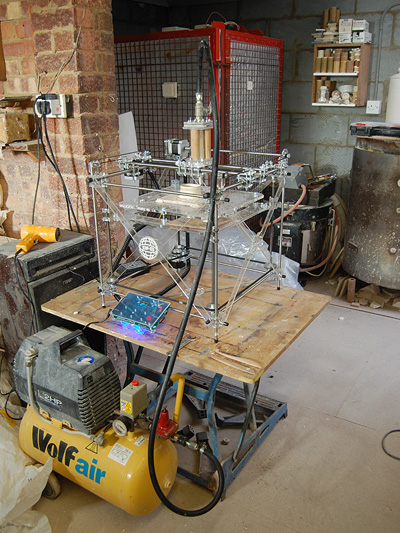

My RapMan supplied by Bits from Bytes, Somerset UK is version 3.1.0 loaded with software 4.0.2. Building the flat pack went ok and I had it moving in three or four days. Not interested in printing plastic I have not put the print head together. Wanting to concentrate on printing clay I got on with putting that together.  My ceramic printing head is very cobbled together with bits of gas kiln equipment as I am well aware that there are still lots of development work to be done and so I just wanted to get started to develop from experience.
My starting point is, as developed by Unfold, a 50/60 cc plastic syringe held in a self made cradle attached to the RapMan printer head mount. The syringe is then pressurised from an air compressor -  that I fortunately already had as I have a spray gun for glazing. The one thing I had to go shopping for was the 1K Ohm resistor that bridges two points of the unused print head cable connector plug on the printer control board. This gets RapMan software to think a pen tool is fitted.

Differences from Unfold –
  • I am using a manual switch at the printer head for air pressure control rather than an electronic solenoid valve. This is for simplicity and so far has worked well as I can stop and start clay ooze as I want.
  • I am using a 1.5 nozzle size as my prints are single walled. My thinking is to duplicate conventional pottery coil building techniques. I have set the Z (vertical axis) increment to 1 mm. So a syringe takes about 20 minutes to empty/print and a tall form can be about 10 cm.
  •  I am printing onto pre prepared wades of clay so do not print a base. This does mean I need to get into the gcode in text editor and cut out some code.
  • I use a (not very good) hairdryer as I print to stiffen up the form as more clay gets layer on.
It has been a week since I got clay oozing and the learning curve has been steep but things are happening and the development put in by Unfold has been invaluable. In which direction all this might go I do not know as ideas and possibilities keep coming but I am making pots. There are still lots of problems, with gcode, with how RapMan behaves, with the limitations of the syringe size but I have a tool I understand and can customise to my ends and that I feel has fantastic creative potential.
There have been post on how to fill a syringe; well I have to add to that. Having a wall mounted clay extruder in my studio I made a simple turn and lock fitment to take the syringe on the base plate. I fill a plastic bag with the clay paste (my mix is 1 water to 2.5 porcelain clay powder) and stuff the bag into the rather rusty extruder. Put in the plunger and extrusion arm and pull down. Result filled syringe, and so easy to attach the next syringe for a fill.
For further information on Jonathan’s work see –

Thanks for sharing Jonathan!

An englishman in Antwerp

Early last summer we got a friendly email from Jonathan Keep, a British potter who was very enthusiastic about what we achieved with 3d ceramic printing. His email kind of popped out between all the other emails of various people who are interested because Jonathan had been playing around for some time with the same idea of a robotized coiling machine based on a Reprap. Unfortunately he did not find time/budget to pursue the project at that time. Luckily for us ;-)
This was before Bits from Bytes started lowering the barrier by offering an easier (than starting from scratch with Reprap) platform to bootstrap this kind of experiments from. Without an XYZ robot to toy with, Jonathan managed to do some 'analog 3d printing' using a hand operated syringe and the results that he attached to his first email where fascinating and impressive to see:

His email ended with the plan to apply for a grant that included buying a BfB machine and doing a field trip to Unfold's office in Antwerp....

Fast forward: Jonathan came to Antwerp with his wife last october and we had a great afternoon (with tea mind you), it was great to exchange ideas. Here you see him using the virtual pottery wheel from L'Artisan Électronique like only a real potter can.

And a great snapshot of Unfold/Keep work:

Jonathan finished his Rapman last week and crafted the first objects with it. He will be posting to the Unfold ˜fab blog too and we are looking forward to what he will produce and post. We already feel the urge to finish the next claystruder prototype of which many bits 'n pieces are laying around in our studio because of the healthy 'competition' Jonathan put forward :-)
The first post will be copy paste below until we can find how to add contributors. We also want to put a bit more effort in the Unfold ˜fab blog and post a bit more frequently from now on.
